Agricultural & Farm Fence
Phoenix is a manufacturer and wholesale distributor of Agricultural Fence products including Farm Field Fence, Game Fence, Horse Fence, Barbed Wire, Fence Staples, Farm Gates and numerous Wire Fence Tools.
We offer industry leading product availability through our significant inventory of all items, stocked in both the Edmonton and Calgary yards. Barbed wire and fence staples are manufactured in our Edmonton plant.
Call your Phoenix Fence Sales representative for information.

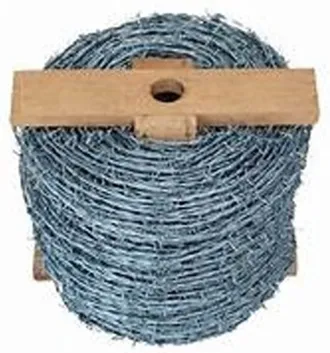

Barbed Wire
Made in EdmontonPhoenix Fence is a manufacturer and distributor of Barbed Wire in a Galvanized 12-1/2 gauge double strand 4 point at 6 inch spacing barbed wire, available in Class III and Standard Canadian Galvanized Finish. Rolls are 80 rods (1,320') long and available on wood or steel spools. We also provide barbless double strand wire.
| Barbed Wire | Feet per Roll | Weight per Roll |
|---|---|---|
| Standard Canadian | 1,320' | 78 lbs |
| Class III | 1,320' | 80 lbs |
| Barbless Standard Canadian | 1,320' | 70 lbs |
| Standard Canadian Barbed Wire (Green Dot) | Class III Barbed Wire (Red Dot) |
|---|---|
| Continuously twisted double strand with 4 point barbs spaced 6" | Continuously twisted double strand with 4 point barbs spaced 6" |
| Strand wires: 12-1/2 gauge (.099" +/- .005") | Strand wires: 12-1/2 gauge (.099" +/- .005") |
| Barb wires: 14 gauge (.080" +/- .005") | Barb wires: 14 gauge (.080" +/- .005") |
| Regular zinc coating | 0.80 oz/sq. ft. minimum strand wires, 0.65 oz/sq. ft. minimum barb wires |
| 950 lbs strand breaking strength | 950 lbs strand breaking strength |
| 80 rods (1,320') per roll | 80 rods (1,320') per roll |
All barbed wire is available per roll and per foot. See Manufacturing & Fabrication for how it is made.

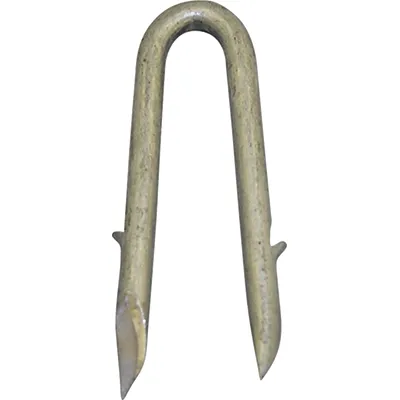

Fence Staples
Made in EdmontonPhoenix Fence is a manufacturer and distributor of "Western Staple" barbed and non-barbed fence staples for attaching barbed wire to wood posts. Manufactured from 9 gauge galvanized wire and available in 1-3/4" and 2" lengths. Packaged in convenient 10 lb and 30 lb plastic pails. Private label staples available upon request.
Staples are available with or without barbs.
Farm Gates
Four Foot High Farm Gates, Pipe & Meshed
- Rigid Welded Construction
- 1-5/8" O.D. 14 Ga. Galvanized Pipe
- Mounting Hardware Included for Wood Posts
- 2 ea. 5/8" x 12" Hinge Bolts, 2 ea. 1-5/8" x 5/8" Frame Hinges
- Chain Latch, Lockable, Complete with 30" x 1/4" Chain
- Width Sizes Indicate Opening Sizes Between Posts
- Pipe gates available with 4 or 5 horizontal rails
Phoenix Fence recommends a section of fence for support on standalone gate posts for panels with 12' and larger openings.
Welded chain link farm corral gates and panels are also manufactured in both plants. See Chain Link Gates.

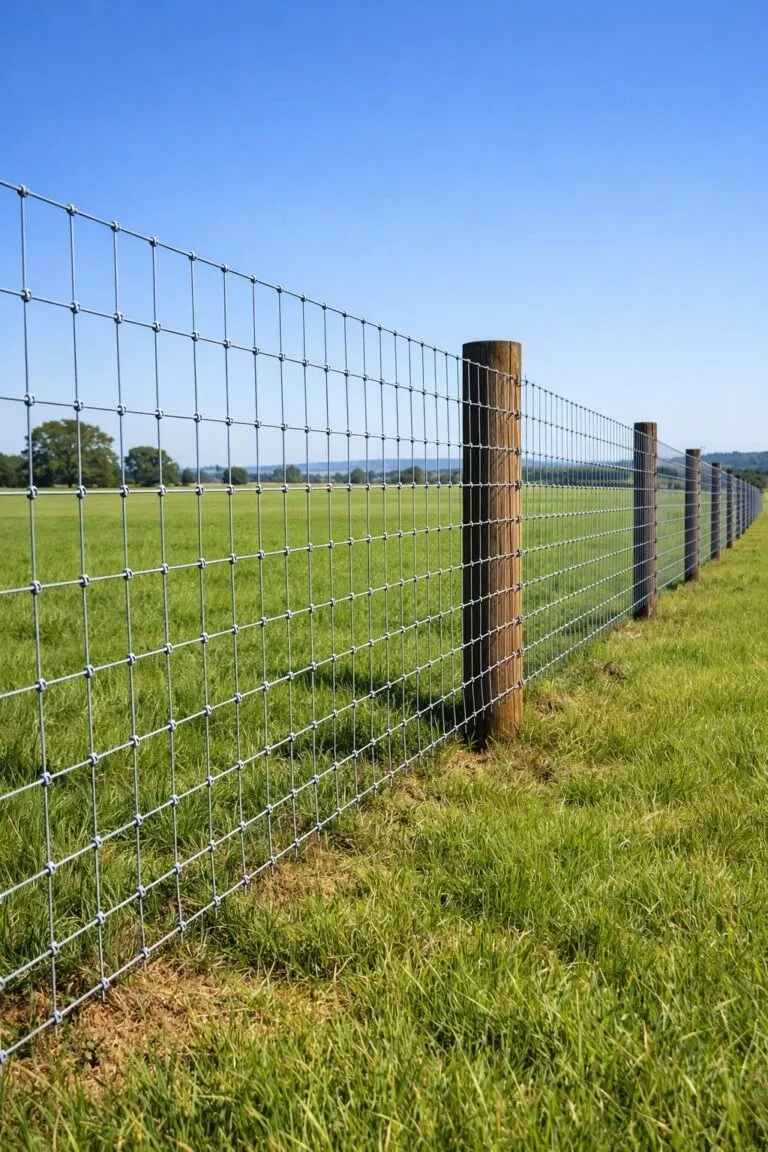

Field & Wildlife Fence
Phoenix Fence is a comprehensive wholesale distributor of 12-1/2 Gauge Standard Field Fence, 12-1/2 Gauge Horse Fence, 14 Gauge High Tensile Farm Fence, Fixed Knot Game Fence and Non-Climb Welded Lawn Fence. We offer industry leading product availability through our significant inventory of all items. Call your Phoenix Fence Sales representative for information.
| Product | Gauge | Heights or wire types | Roll length | Roll weight | Notes |
|---|---|---|---|---|---|

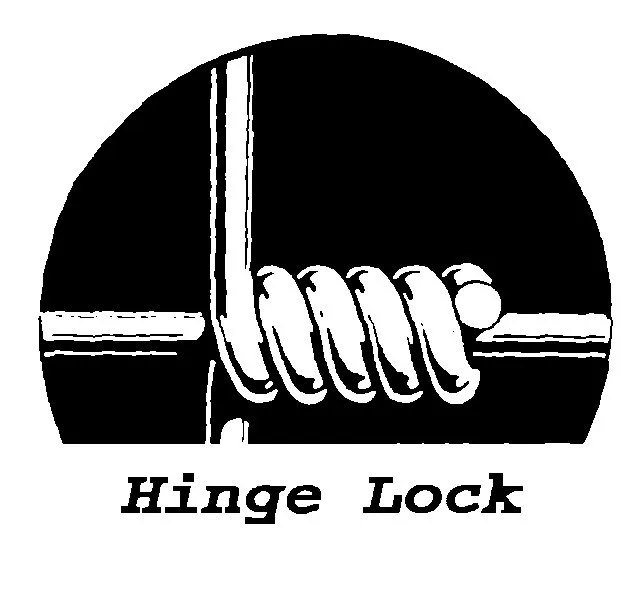

| Standard Field Fence | 12-1/2 | 11/55/6, 10/47/6, 9/39/6, 8/32/6, 7/26/6 | 330' | 128 to 213 lbs | Hinge joint, galvanized |
| Horse Fence | 12-1/2 | 48" or 60" high, 2" x 4" opening | See spec sheet | See spec sheet | Rangemaster, Class 1 galvanized |
| High Tensile Farm Fence | 14 | 10/47/6, 9/39/6, 8/32/6 | 330' | 88 to 115 lbs | Lighter rolls, high tensile wire |
| Fixed Knot Game Fence | High tensile | 23/120/6 down to 8/42/12 | 330' or 660' | 205 to 492 lbs | Exceeds Class 3 galvanizing, 20' post centres |
| Non-Climb Welded Lawn Fence | Welded | 36", 48", 60", 72" | 100' | 74 to 146 lbs | Welded mesh |
The first number indicates the number of horizontal wires, the second the height of the fence in inches, and the last the distance between vertical stays in inches. For example, 11/55/6 is a roll with 11 horizontal wires, 55" high, with vertical stays 6" apart.

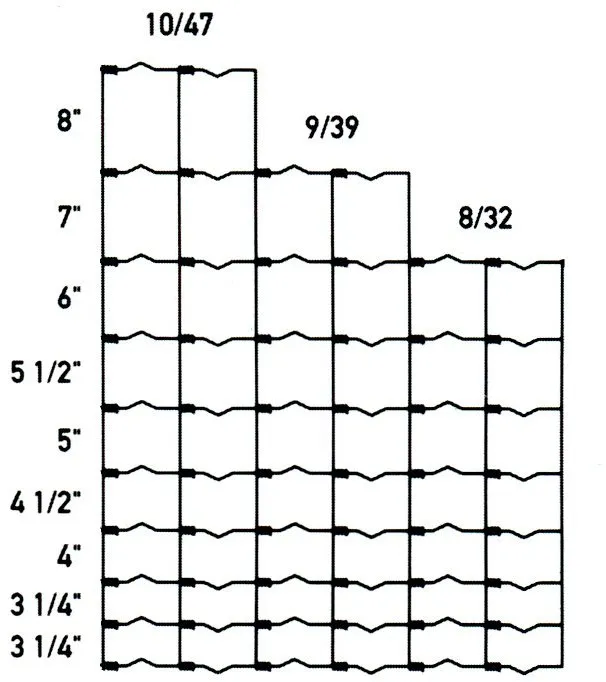

12-1/2 Gauge Standard Field Fence
Phoenix Fence is a comprehensive manufacturer and wholesale distributor of 12-1/2 Gauge Standard Field Fence. We offer industry leading product availability through our significant inventory of all items.
| Wire Type | Length per roll | Weight per roll |
|---|---|---|
| 11/55/6 | 330' | 213 lbs |
| 10/47/6 | 330' | 189 lbs |
| 9/39/6 | 330' | 168 lbs |
| 8/32/6 | 330' | 148 lbs |
| 7/26/6 | 330' | 128 lbs |
12-1/2 Gauge Horse Fence
Phoenix Fence is a wholesale distributor of 12-1/2 Gauge Horse Fence. We offer industry leading product availability through our significant inventory of all items.
- Top and bottom wires are made out of 12-1/2 ga galvanized wire
- Intermediate line wires are made out of 12-1/2 ga galvanized wire
- Stay wires are made out of 12-1/2 ga galvanized wire
- The 2" x 4" opening of the Rangemaster Horse Fence keeps horses in and other animals out of the horse paddock
- Designed so horses cannot step through the fence
- Designed to fully contain equine impacts without harming your horses. The proven construction absorbs impacts, and then retracts to its original position
- Choose from 48" or 60" high
- Galvanization is available in Class 1
14 Gauge High Tensile
Phoenix Fence is a wholesale distributor of 14 Gauge High Tensile Farm Fence. We offer industry leading product availability through our significant inventory of all items.
| Wire Type | Length per roll | Weight per roll |
|---|---|---|
| 10/47/6 | 330' | 115 lbs |
| 9/39/6 | 330' | 101 lbs |
| 8/32/6 | 330' | 88 lbs |

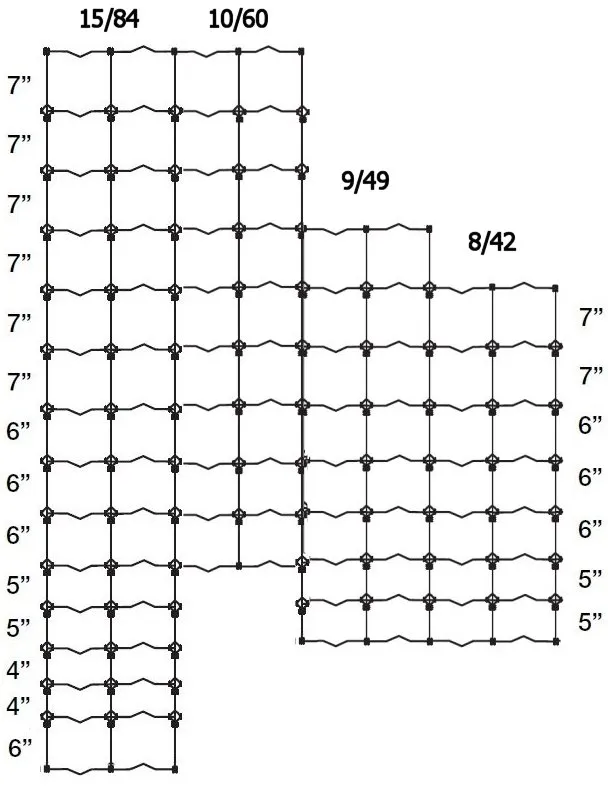

Fixed Knot Game Fence
Phoenix Fence is a comprehensive wholesale distributor of Fixed Knot Game Fence. We offer industry leading product availability through our significant inventory of all items.
| Wire Type | Length per roll | Weight per roll |
|---|---|---|
| 23/120/6 | 330' | 492 lbs |
| 20/96/6 | 330' | 386 lbs |
| 20/96/12 | 330' | 276 lbs |
| 17/75/6 | 330' | 318 lbs |
| 17/75/12 | 330' | 229 lbs |
| 13/75/6 | 330' | 269 lbs |
| 13/48/6 | 330' | 234 lbs |
| 10/60/6 | 330' | 205 lbs |
| 10/60/12 | 660' | 288 lbs |
| 9/49/12 | 660' | 252 lbs |
| 8/42/12 | 660' | 220 lbs |
For example, 10/60/6 is a roll with 10 horizontal wires, 60" high, with vertical stays 6" apart.
FIXED-KNOT fencing is designed specifically for wildlife and is not a domestic livestock fence being used as a wildlife fence. Here is the ultimate in fencing for all animals, large or small, wild or domestic. FIXED-KNOT, a North American product, gives excellent control for animal containment, exclusion and protection from predators.
FIXED-KNOT Hi-Tensile fencing is the best of its kind. Exceeding Class 3 galvanizing assures three times the life over conventional hinge joint fencing. The combination of Hi-Tensile wire (which provides three times the strength of conventional 12-1/2 ga. wire) and fixed knot vertical stays allow fence installation using 20' post centres.
Non-Climb Welded Lawn Fence
Phoenix Fence is a comprehensive wholesale distributor of Non-Climb Welded Lawn Fence. We offer industry leading product availability through our significant inventory of all items.
| Height | Length per roll | Weight per roll |
|---|---|---|
| 36" | 100' | 74 lbs |
| 48" | 100' | 98 lbs |
| 60" | 100' | 122 lbs |
| 72" | 100' | 146 lbs |
Wildlife fence on galvanized steel posts, with optional electrification for bears and wolves, is covered on the Electric Bear Fence page.
Wire Fence Tools
Phoenix Fence is a comprehensive wholesale distributor of Wire Fence Tools, tie wires, hog rings and coiled wire.
Permanent wire strainers: Drop pin style strainer makes erecting and maintaining a fence easy. Can be tightened (or loosened) using a wrench or the universal handle.
Spec sheets
Field fence, horse fence, high tensile, fixed knot, staples and fencing tools. The full library is on the Downloads page.
