Slide Gate Operators
Phoenix Fence offers different options for your automated gate needs, one of those options is a sliding gate operator. Phoenix Fence has two main slide gate operator options available to you: the IHSL24UL chain driven gate operator made by LiftMaster, and the SlideDriver 40 hydraulic driven slide gate operator. Both of these options are very reliable choices for your home or business.
For all slide gate operators Phoenix Fence Edmonton and Calgary offer a specialized, in-house, Automatic Gate Operator Sales and Service team, with extensive on hand inventory of Gate Operators, Parts and Accessories. Our factory trained and certified electronics technicians can process all supply only, installation and service requirements. From a basic radio controlled system to a fully monitored, remotely accessed, multi unit system, Phoenix has the experience and resources to design, install and service all custom powered gate projects.
Please note that Phoenix Fence does offer more slide gate options; the products below are the most popular and widely used. For more information on Phoenix Fence's slide gate operators please contact a Phoenix Fence Automated Gate sales representative.
All new LiftMaster gate operators require a monitored safety device (photo eyes or sensing edge) to be connected. See Photo Eyes & Sensing Edges.
Compare the models
| Model | Gate weight | Gate length | Duty and use |
|---|---|---|---|
| IHSL24UL | Up to 5,500 lbs | See sell sheet | Continuous duty, commercial and industrial, heater included |
| INSL24UL | Up to 2,200 lbs | See sell sheet | Continuous duty, commercial and industrial, heater included |
| HDSL24UL | Up to 3,000 lbs | Up to 24' | High cycle, heavy duty, high traffic commercial |
| CSL24UL | Up to 1,500 lbs | Up to 24' | High cycle, heavy duty, high traffic commercial |
| SlideDriver II 40 | Up to 4,000 lbs | Speeds up to 3 ft/s | Hydraulic, heavy duty industrial, special order |
IHSL24UL
Commercial / Industrial

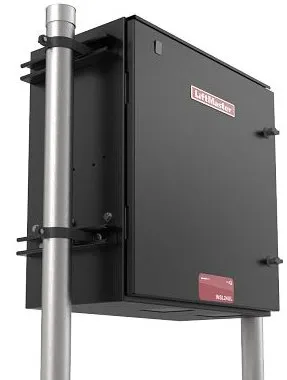

The IHSL24UL gate operator is a continuous duty slide gate operator that utilizes a 24VDC brushless motor with soft start/stop. The powerful design allows the IHSL24UL to haul gates up to 5,500 lbs. The IHSL24UL comes with a fully enclosed NEMA 3R rated, oil tight, weatherproof, lockable cabinet and a high-starting continuous duty torque motor to ensure that it will perform in all conditions.
The IHSL24UL comes with a heater that allows the gate operator to work in all climates.
The IHSL24UL gate operators we stock come in
- 115V 1 Phase
- 230V 1 Phase
Will require a 3 Phase power converter for these additional voltages
- 208V 3 Phase
- 460V 3 Phase
- 575V 3 Phase
| Steel Cabinet | Weatherproof 14 gauge, NEMA 3R steel cabinet |
|---|---|
| Battery Backup | Yes |
| Remote Control Access | Security+ 2.0 3-channel receiver will handle up to 50 remotes |
| Internet Connectivity | MyQ Facility cloud connection for secure monitoring |
| Monitored Safety Devices | 6 inputs (main and expansion board) |
| Diagnostic Display | LED diagnostic display |
| Wireless Dual-Gate Communication | Eliminates expensive conduit costs and unsightly driveway scars |
| Dual-Gate Control | Bi-part delay or synchronized close |
| Fire Department Compliant | Allows gate to auto open upon loss of AC power, manual release |
| Limit Setting | Electronic |
| Programmable Auxiliary Relays | 4 programmable auxiliary relays accommodate more accessories |
| Unauthorized Access Prevention | Can be programmed with anti-tailgate or quick close capabilities |
| HomeLink Capability | Version 4 or higher |
Please call Phoenix Fence's Automated Gate department for more information.
Sell sheet
1 fileINSL24UL
Commercial / Industrial

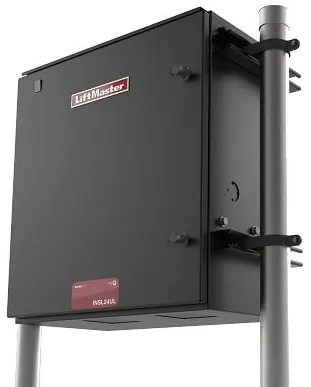

The INSL24UL gate operator is a continuous duty slide gate operator that utilizes a 24VDC brushless motor with soft start/stop. The powerful design allows the INSL24UL to haul gates up to 2,200 lbs. The INSL24UL comes with a fully enclosed NEMA 3R rated, oil tight, weatherproof, lockable cabinet and a high-starting continuous duty torque motor to ensure that it will perform in all conditions.
The INSL24UL comes with a heater that allows the gate operator to work in all climates.
The INSL24UL gate operators we stock come in
- 115V 1 Phase
- 230V 1 Phase
Will require a 3 Phase power converter for these additional voltages
- 208V 3 Phase
- 460V 3 Phase
- 575V 3 Phase
Please call Phoenix Fence's Automated Gate department for more information.
Sell sheet
1 fileOther slide operator sell sheets
2 filesHDSL24UL
Commercial / Industrial

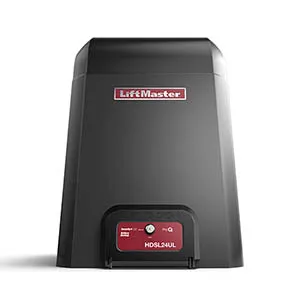

The HDSL24UL slide gate operator is a high cycle operator meant for heavy duty applications. The HDSL24UL is engineered for a million cycles, with high daily cycles. The HDSL24UL can move gates as long as 24' that weigh as much as 3,000 lbs. This makes the HDSL24UL gate operator perfect for your commercial property or business with high traffic flow.
Performance
- Battery Backup with exceptional standby power (up to 24 days)
- High-traffic continuous duty 24VDC motor
- Soft start/stop operation
- High-impact polycarbonate UV-resistant cover
- 1/4" gold zinc plated chassis eliminates corrosion
- 2-digit LED diagnostic display
- 2 auxiliary power outlets
Safety
- Security+ 2.0 technology virtually eliminates interference and offers up to 2X the range of standard remote controls so you can access your facility quickly and safely
- 3-channel receiver: OPEN/CLOSE/STOP
- Receiver stores up to 50 remotes
- Integrated Plug-In Loop Detector inputs
- Fire department compliance
- Pre-motion warning alarm
- Anti-tailgate stops the gate from closing when a vehicle pulls into the interrupt loop or breaks the photo eye beam; the gate continues once the vehicle backs up
- Quick close lets the gate close immediately after the vehicle leaves the interrupt loop
- Non-scissoring gate arm with emergency release handle
- Inputs for 6 safety devices
- UL/cUL listed, tested to the most stringent industry guidelines
Please call Phoenix Fence's Automated Gate department for more information.
Product guide
1 fileCSL24UL
Commercial / Industrial

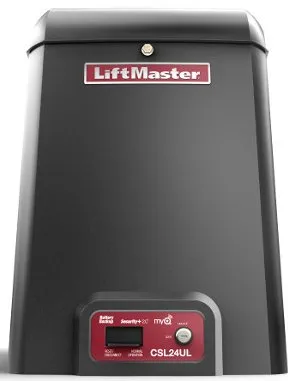

The CSL24UL slide gate operator is a high cycle operator meant for heavy duty applications. The CSL24UL is engineered for a million cycles, with high daily cycles. The CSL24UL can move gates as long as 24' that weigh as much as 1,500 lbs. This makes the CSL24UL gate operator perfect for your commercial property or business with high traffic flow.
Performance
- Battery Backup with exceptional standby power (up to 24 days)
- High-traffic continuous duty 24VDC motor
- Soft start/stop operation
- High-impact polycarbonate UV-resistant cover
- 1/4" gold zinc plated chassis eliminates corrosion
- 2-digit LED diagnostic display
- 2 auxiliary power outlets
Safety
- Security+ 2.0 technology virtually eliminates interference and offers up to 2X the range of standard remote controls so you can access your facility quickly and safely
- 3-channel receiver: OPEN/CLOSE/STOP
- Receiver stores up to 50 remotes
- Integrated Plug-In Loop Detector inputs
- Fire department compliance
- Pre-motion warning alarm
- Anti-tailgate stops the gate from closing when a vehicle pulls into the interrupt loop or breaks the photo eye beam; the gate continues once the vehicle backs up
- Quick close lets the gate close immediately after the vehicle leaves the interrupt loop
- Non-scissoring gate arm with emergency release handle
- Inputs for 6 safety devices
- UL/cUL listed, tested to the most stringent industry guidelines
Please call Phoenix Fence's Automated Gate department for more information.
Sell sheet
1 fileHy-Security SlideDriver II 40
Special order
Heavy Duty Industrial Slide Gate Operator
The SlideDriver II is a powerful hydraulic slide gate operator. The SlideDriver II 40 has the ability to move gates up to 4,000 lbs at speeds as high as 3 ft/s. The 12 gauge, zinc plated, steel chassis protects all moving parts and controls from vandalism. The powder coating on the case provides excellent corrosion resistance for an attractive finish. The SlideDriver II 40 is offered in a wide range of voltages spread across 1 and 3 phase power. This model is highly recommended for heavy-duty applications.
Features
- Longest life and lowest maintenance
- Smooth travel and less wear
- Extremely reliable hydraulics
- Smart touch controller for programming
- Rated for -40 degrees Celsius
- UL 325 compliant for class I, II, III and IV
Please note that the SlideDriver II 40 gate operator is a special order item.
Please call Phoenix Fence's Automated Gate department for more information.
Brochure
