Swing Gate Operators
Phoenix Fence offers different options for your automated gate needs, one of those options is a swinging gate operator. Phoenix Fence carries two main swing gate operators in the LA400 and the LA500. These gate operators are great for your residential or light commercial needs. Phoenix Fence also deals with a High Traffic Heavy Duty swing gate operator called the CSW24UL which is great for heavy commercial or industrial sites that have a heavy flow of traffic. All three of these options are a very reliable choice for your home or business.
Please note that Phoenix Fence does offer more swing gate options; the products below are the most popular and widely used. For more information on Phoenix Fence's swing gate operators please contact a Phoenix Fence Automated Gate sales representative.
All new LiftMaster gate operators require a monitored safety device (photo eyes or sensing edge) to be connected. See Photo Eyes & Sensing Edges.
Compare the models
| Model | Gate weight | Gate length | Duty and use |
|---|---|---|---|
| HDSW24UL | Up to 2,800 lbs | Up to 14' | High cycle, heavy duty, high traffic commercial and industrial |
| CSW24UL | Up to 1,200 lbs | Up to 14' | High cycle, heavy duty, high traffic commercial and industrial |
| LA500UL | Up to 1,600 lbs | Up to 12' | Residential and light commercial, rated to -40 C |
| LA400UL | Up to 800 lbs | See sell sheet | Residential, our most popular swing operator |
| LA412XL | See sell sheet | 10' single or 20' double swing | Residential, solar powered, no power run required |

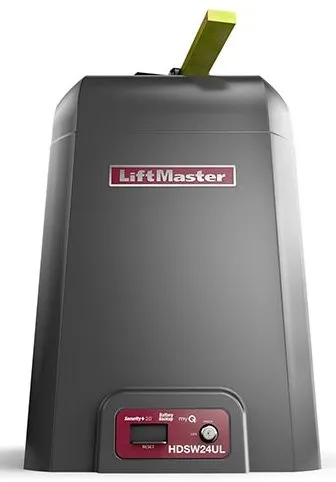

HDSW24UL
Commercial / Industrial
The HDSW24UL swing gate operator is a high cycle operator meant for heavy duty applications. The HDSW24UL is engineered for a million cycles, with high daily cycles. The HDSW24UL can move gates as long as 14' that weigh as much as 2,800 lbs. This makes the HDSW24UL gate operator perfect for your commercial property or business with high traffic flow.
Performance
- Battery Backup with exceptional standby power (up to 24 days)
- High-traffic continuous duty 24VDC motor
- Soft start/stop operation
- High-impact polycarbonate UV-resistant cover
- 1/4" gold zinc plated chassis eliminates corrosion
- 2-digit LED diagnostic display
- 2 auxiliary power outlets
Safety
- Security+ 2.0 technology virtually eliminates interference and offers up to 2X the range of standard remote controls so you can access your facility quickly and safely
- 3-channel receiver: OPEN/CLOSE/STOP
- Receiver stores up to 50 remotes
- Integrated Plug-In Loop Detector inputs
- Fire department compliance
- Pre-motion warning alarm
- Anti-tailgate stops the gate from closing when a vehicle pulls into the interrupt loop or breaks the photo eye beam; the gate continues once the vehicle backs up
- Quick close lets the gate close immediately after the vehicle leaves the interrupt loop
- Non-scissoring gate arm with emergency release handle
- Inputs for 6 safety devices
- UL/cUL listed, tested to the most stringent industry guidelines
Please call Phoenix Fence's Automated Gate department for more information.
Product guide

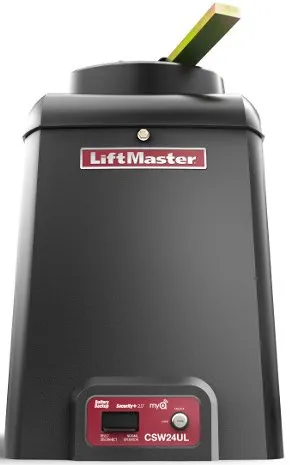

1 fileCSW24UL
Commercial / Industrial
The CSW24UL swing gate operator is a high cycle operator meant for heavy duty applications. The CSW24UL is engineered for a million cycles, with high daily cycles. The CSW24UL can move gates as long as 14' that weigh as much as 1,200 lbs. This makes the CSW24UL gate operator perfect for your commercial property or business with high traffic flow.
Performance
- Battery Backup with exceptional standby power (up to 24 days)
- High-traffic continuous duty 24VDC motor
- Soft start/stop operation
- High-impact polycarbonate UV-resistant cover
- 1/4" gold zinc plated chassis eliminates corrosion
- 2-digit LED diagnostic display
- 2 auxiliary power outlets
Safety
- Security+ 2.0 technology virtually eliminates interference and offers up to 2X the range of standard remote controls so you can access your facility quickly and safely
- 3-channel receiver: OPEN/CLOSE/STOP
- Receiver stores up to 50 remotes
- Integrated Plug-In Loop Detector inputs
- Fire department compliance
- Pre-motion warning alarm
- Anti-tailgate stops the gate from closing when a vehicle pulls into the interrupt loop or breaks the photo eye beam; the gate continues once the vehicle backs up
- Quick close lets the gate close immediately after the vehicle leaves the interrupt loop
- Non-scissoring gate arm with emergency release handle
- Inputs for 6 safety devices
- UL/cUL listed, tested to the most stringent industry guidelines
Please call Phoenix Fence's Automated Gate department for more information.
Sell sheet
1 fileLA500UL
Residential / Light Commercial
The LA500UL is one of the most powerful swing gate operators that Phoenix Fence keeps in stock. This allows the LA500 to deliver unsurpassed performance and to offer the best security to your property. The LA500UL is perfect for the swing gates on your commercial property or any large gate that you may have at your home. The LA500UL gate operator can move gates as large as 12' and can move smaller gates that weigh as much as 1,600 lbs. Along with having a large gate capacity the LA500UL is spec'd to work in temperatures as low as -40 degrees Celsius.
Performance
- Battery backup provides up to 500 cycles or 24 days of standby power when the power is out
- Continuous-duty DC motor
- Soft start/stop operation
- Commercial duty cast aluminum housing
- Wormgear reduction precision machined all-metal gear
- Electronic limit setting
- 2-digit LED diagnostic display
- 2 auxiliary power outlets
- Party pass (selectable hold-open feature)
Safety
- Security+ 2.0 Technology virtually eliminates interference and offers up to 2X the range of standard remote controls so you can access your facility quickly and safely
- 3-channel receiver: OPEN/CLOSE/STOP
- Compatible with HomeLink version 4 and higher
- Receiver stores up to 50 remote controls
- Fire Department compliance: auto open on AC fail or battery depletion
- Bi-part delay
- Synchronized close
- Keyed manual disconnect
- Timer-to-Close
- UL/cUL listed, tested to the most stringent industry guidelines
- Pre-motion warning alarm
Please call Phoenix Fence's Automated Gate department for more information.
Sell sheets
2 filesLA400UL
ResidentialThe LA400UL is Phoenix Fence's most popular swing gate operator. The LA400UL is a very reliable residential swing gate operator, perfect for your home or business. The LA400UL is rated to move a gate that weighs as much as 800 lbs and comes with a battery backup, so in case the power goes out you can still get through the gate.
Performance
- The battery backup provides up to 400 cycles or 97 days of standby power when the power is out
- Soft start/stop operation
- Wormgear reduction precision machined all metal gear
- Electronic limit setting
- 2-digit LED diagnostic display
- 2 auxiliary power outlets
- Party Pass (selectable hold open feature)
Safety
- Security+ 2.0 Technology virtually eliminates interference and offers up to 2X the range of standard remote controls so you can access your facility quickly and safely
- 3-channel receiver: OPEN/CLOSE/STOP
- Compatible with HomeLink version 4 and higher
- Receiver stores up to 50 remote controls
- Fire Department compliance: auto open on AC fail or battery depletion
- Bi-part delay
- Synchronized close
- Keyed manual disconnect
- Timer-to-Close
- UL/cUL listed, tested to the most stringent industry guidelines
Please call Phoenix Fence's Automated Gate department for more information.
Sell sheets

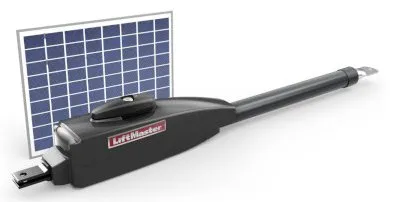

2 filesLA412XL Solar Powered Gate Operator
Residential
Phoenix Fence now offers a solar powered gate operator option. The LA412XL is the ideal gate operator for you if you do not have the ability to run power to your gate location. This low voltage system makes it possible to run your gate in northern climates without having to run power. This gate operator is for a residential application and not recommended for commercial use. The largest gate openings the LA412XL will power are 10' single swing gates or a 20' double swing gate.
Please call Phoenix Fence's Automated Gate department for more information.
Sell sheet
