Temporary & Modular Fence Panels
Phoenix Fence manufactures, distributes and professionally installs Modular Portable Fence Panels in various styles, heights and specifications. As the name suggests, this enclosure system is based on modular, pre-manufactured, fence panels that are portable, free standing and re-usable.

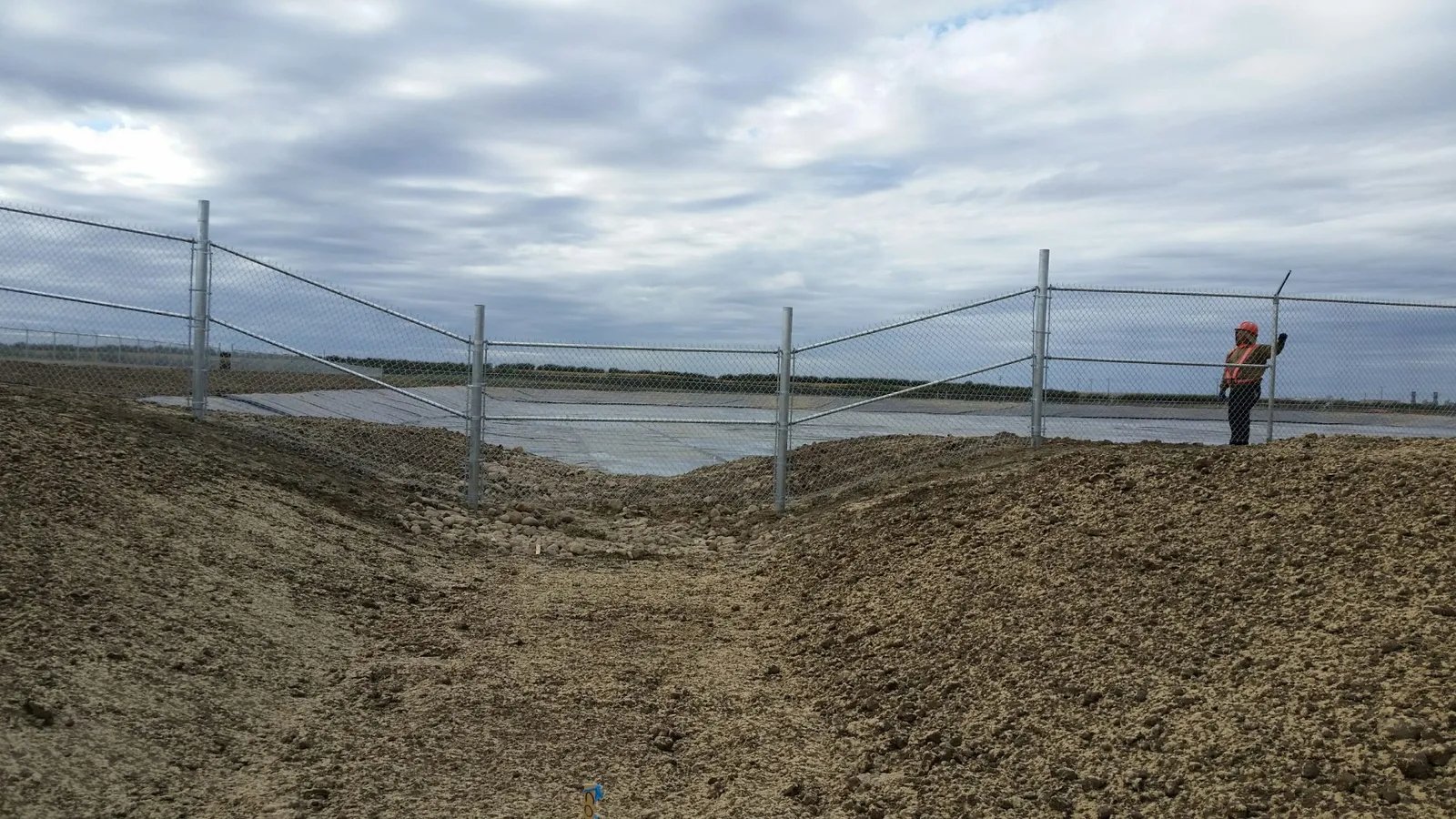

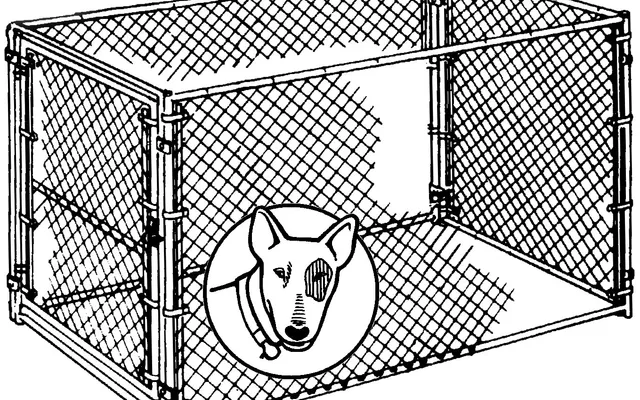

Panels are simply clamped together and are self supporting by way of support bases, offset panels or pounding rod assemblies. They are an extremely versatile alternative to permanently installed fence. Site assembly is fast and easy with the ability to reconfigure the enclosure. Short term, light duty, applications include special events, construction sites, garden centres, animal enclosures etc. Long term, medium & heavy duty, applications include well heads, tanks, valves, meter stations, compressor stations, transformers, substations etc.
| Oilfield | Construction | Other |
|---|---|---|
| Well heads, tanks, valves, meter stations, etc. | Hoarding excavations, equipment and material storage. | Garden centres, temporary sales areas, transformers and substations. |
Features
- Permanent or temporary security
- Ideal for remote, limited access or difficult to excavate sites
- Easily and quickly installed
- Completely re-useable and can be enlarged with additional panels
Documents
1 filePanel specifications
Panel sections are rigid welded construction using galvanized pipe with 6’ high x 9-gauge galvanized chain link mesh attached with standard fence hardware. Panels are topped with 3 strands of barbed wire.
Standard panel sizes: 8’ to 24’ length sections, 7’ overall height (6’ high plus 3 strands of barbed wire). Panel sizes range from 6′ wide x 6′ high to 24′ wide x 8′ high.
| Component | Light duty | Medium duty | Heavy duty |
|---|---|---|---|
| Horizontal top rail | 1-5/8" O.D. | 1-5/8" O.D. | 1-5/8" O.D. |
| Horizontal bottom rail | 1-5/8" O.D. | 2-3/8" O.D. | 2-7/8" O.D. |
| Line post (panels over 12' in length) | 1-5/8" O.D. | 1-5/8" O.D. | 1-5/8" O.D. |
| End post | 1-5/8" O.D. | 1-7/8" O.D. | 2-3/8" O.D. |
| Detail | Specification |
|---|---|
| Gate frame size | 1-5/8" O.D. (.083" wall) |
| End post size | 1-7/8" O.D. (.083" wall) with light or medium panels; 2-3/8" O.D. (.083" wall) with heavy duty panels |
| Gate post size | 2-3/8" O.D. (.083" wall) |
| Horizontal bottom rail | 2-7/8" O.D. (Schedule 40) |
| Opening size | 8' to 20' (4' less than overall length of panel) |
| Panel size | 12' to 24' |

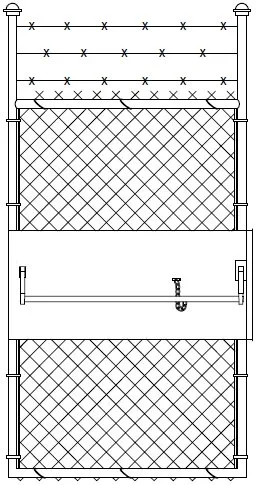

Gate options: a 4’ man gate inset into any panel complete with standard latch hardware, and panic hardware for emergency exit/entrance on man gates. Access gates can be easily fabricated into a Modular Fence Panel, from a Single Swing Man Gate with Panic Exit Hardware and Security Shrouds to a 20′ wide Double Swing Vehicle Gate.
Made in-house
Edmonton and CalgaryBoth our Edmonton and Calgary operations offer full service production manufacturing of Modular Portable Fence Panels. We produce numerous stock and special order sizes, styles and specifications. Panels are manufactured from an all welded construction with components (frame, mesh, hardware) available in five standard finishes: Galvanized, Black, White, Brown or Green.
Pre-manufactured Portable Fence Panels (Modular Site Enclosures) are available in a variety of sizes and specifications, optionally with 3-strand barbed wire on top (BWO) or full fabric height (FFH). See Manufacturing & Fabrication.
Get panels
Contact your Phoenix Fence Industrial Sales representative for further information, or send the enclosure size and site details through the business estimate form.
