Dog Runs & Kennels
Phoenix Fence manufactures and distributes Chain Link Dog Runs and Kennels in various styles, heights and specifications.
Standard Phoenix Dog Runs and Kennels are based on modular, welded fence panel construction, that are portable, free standing and re-usable. Panels are simply clamped together to provide a stable self supporting animal enclosure. Site assembly is fast and easy with the ability to reconfigure the enclosure. Panels are available in various widths and heights. Panels can include a lockable access gate.
Both our Edmonton and Calgary operations offer full service production manufacturing of Dog Runs and Kennels. We produce numerous stock and special order sizes. They are manufactured from an all welded galvanized steel construction with components (frame, mesh, hardware) available in five standard finishes: Galvanized, Black, White, Brown or Green. Individual panel sizes range from 4′ wide x 4′ high to 10′ wide x 6′ high. The combination of these individual panels offers a limitless range of Dog Run and Kennel sizes.
Contact your Phoenix Fence sales representative for further information.
Documents
1 filePackaged kennel kits

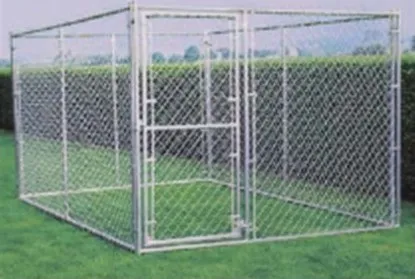

Made in-housePhoenix manufactures one style of Chain Link pet enclosure: the welded panel dog kennel, packaged as a kit that sets up in about 30 minutes on any level surface with no post holes to dig.

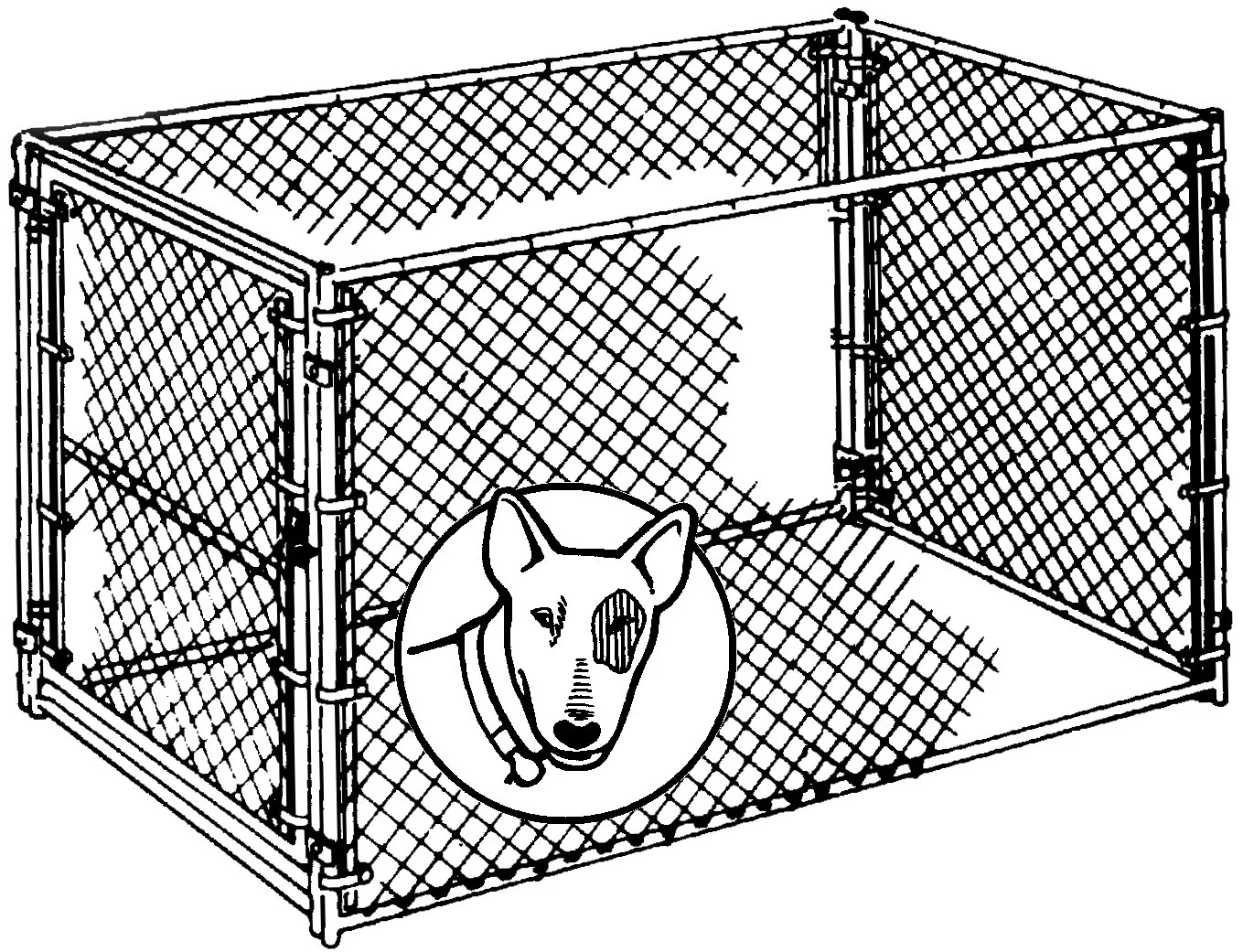

Welded Panel Dog Kennels
- All welded panel construction
- Panels simply clamp together and are self supporting
- Galvanized or Coloured (Black, White, Brown, Green & Beige)
- Panels available in numerous widths and heights
- Various specifications available for Chain Link Fabric gauge
- Access gate panels manufactured into panels
- Portable and re-locatable
Documents
1 fileFeatures and hardware
- Cost less than regular installed fences.
- Free standing, panels are simply clamped together with 1/2” clearance between panel posts.
- Sets up easily in 30 minutes.
- Completely portable and relocatable.
- Sets on any level surface, no post holes to dig.
- All galvanized construction to prevent corrosion.
- No sharp edges to injure your dog.

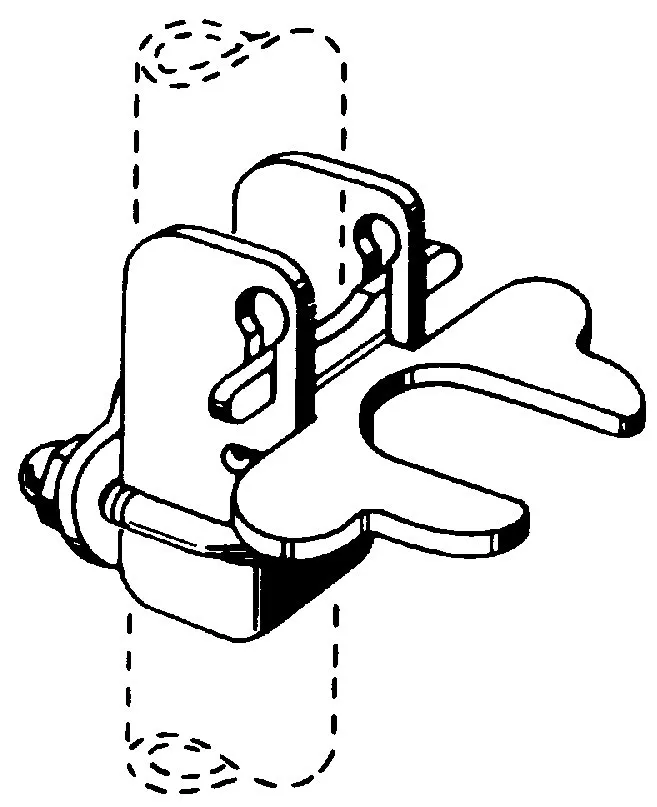

Phoenix “Flip-latch”
A new concept in kennel latches: simply lift the keeper and roll back for the open position; to latch, flip the keeper away from the gate, allowing it to engage the post and latch itself. May be mounted left or right for gates swinging in or out. Opens from both sides, easy for people but almost impossible for dogs, with only 7/8” clearance between posts and provision for a padlock.

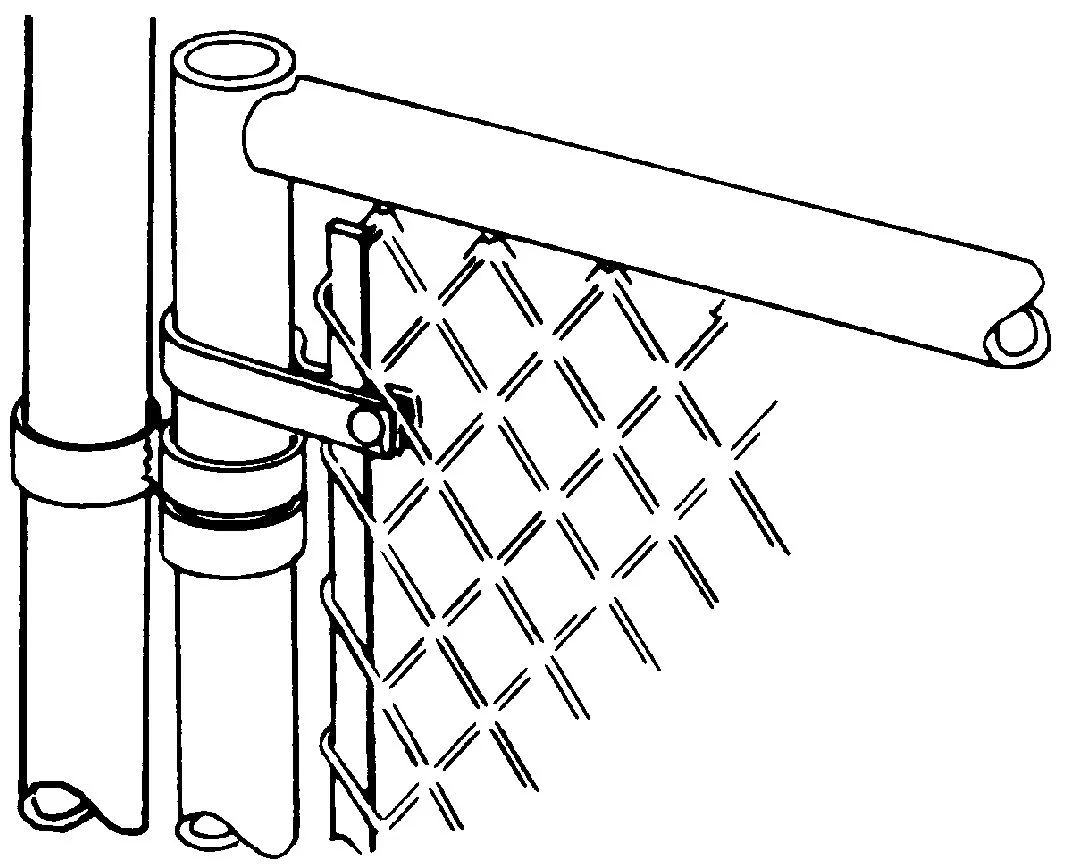

Hinge assembly and panel clamps
The hinge reduces clearance between frame and gate to approximately 3/8”. It is made for square welded gates: the gate itself (one side) becomes part of the hinge assembly and takes the place of the regular frame hinge. Panels join together with panel clamps.
