Ornamental Fence

The three residential lines are stocked with posts, gates and hardware, so a fence can be supplied or installed without a special order lead time. Montage panels follow the steepest grades without stair stepping, and all fences in the Montage family can traverse 48″ over an 8′ span.

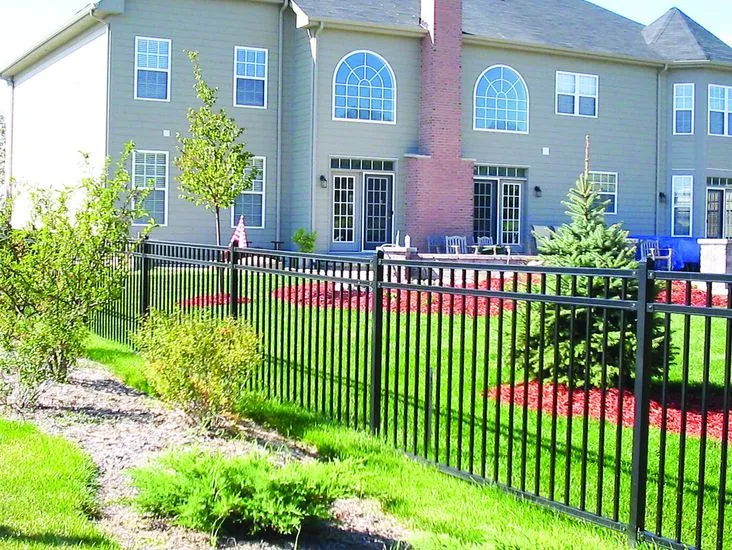

Phoenix, Edmonton and Calgary, stock the industry standard “Montage Majestic” style Ornamental Fence System manufactured by Ameristar Fence Products in 3′, 4′, 5′ & 6′ heights complete with posts, multiple swing gate sizes and fittings/hardware.

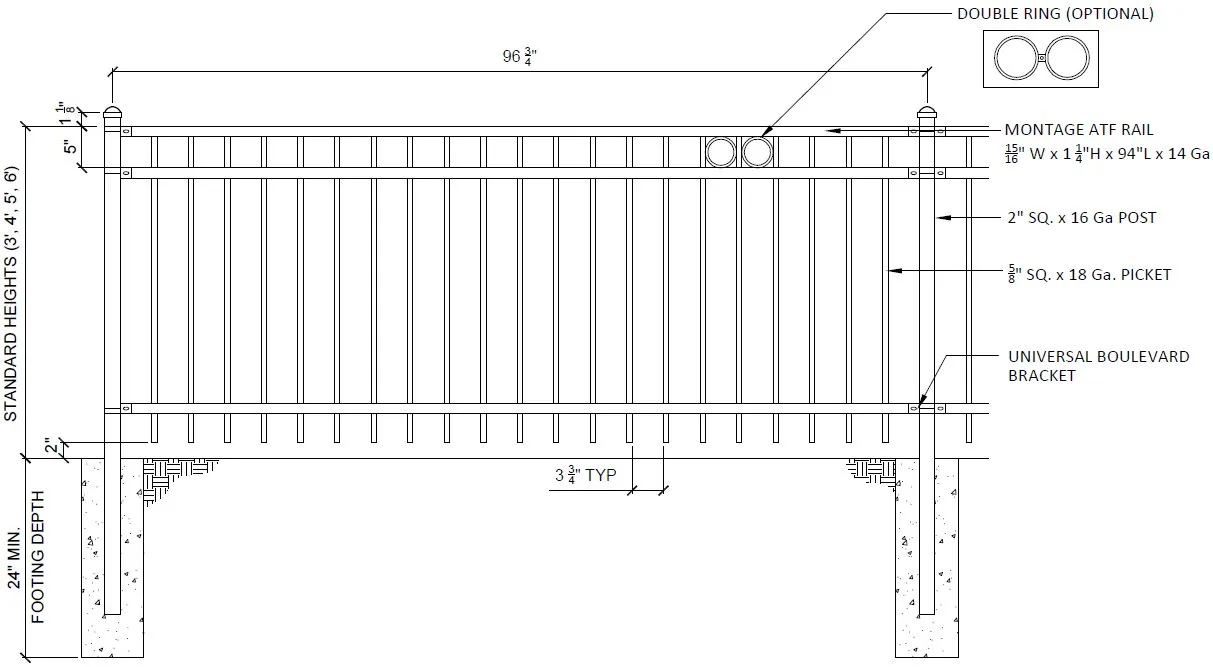

The elegant simplicity of Montage Majestic features a flat top rail with pickets descending through a mid rail and a bottom rail. The 5/8 inch, 18 gauge pickets are welded using Ameristar’s ProFusion process, which welds strong, virtually invisible structural connections without additional unsightly fasteners. Many prefer Montage ornamental fences over aluminum fencing for the additional strength that a welded steel fence has compared to aluminum fences.

The unique fence panel design of the Montage Majestic has the ability to follow the steepest of grades so as to be installed along a slope without unsightly “stair stepping” of the fence panels. Montage Fence Panels are manufactured from high quality galvanized steel and offer a 20 year warranty on their acrylic “E-Coat” paint finish.

Contact your Phoenix Fence Sales representative for further information.

Phoenix, Edmonton and Calgary, stock the industry standard “Montage Genesis” style Ornamental Fence System manufactured by Ameristar Fence Products in 3′, 4′, 5′ & 6′ heights complete with posts, multiple swing gate sizes and fittings/hardware.

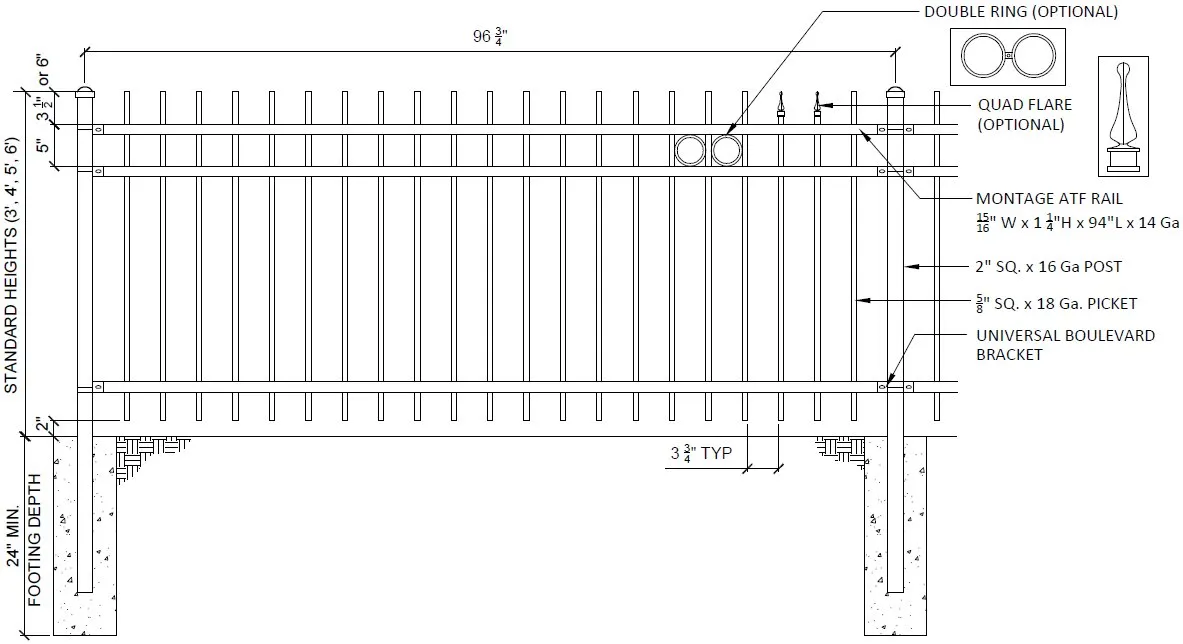

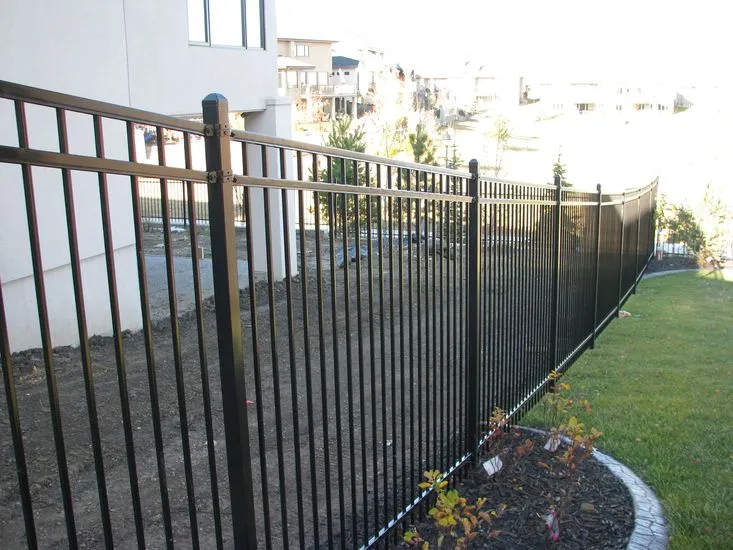

The traditional wrought iron aesthetics of Genesis feature a squared top, through picket style, with pickets descending through a mid rail and a bottom rail. The 5/8 inch, 18 gauge pickets are welded using Ameristar’s ProFusion process, which welds strong, virtually invisible structural connections without additional unsightly fasteners. Many prefer Montage ornamental fences over aluminum fencing for the additional strength that a welded steel fence has compared to aluminum fences.

The unique fence panel design of the Montage Genesis has the ability to follow the steepest of grades so as to be installed along a slope without unsightly “stair stepping” of the fence panels. Montage Fence Panels are manufactured from high quality galvanized steel and offer a 20 year warranty on their acrylic “E-Coat” paint finish.

Contact your Phoenix Fence Sales representative for further information.

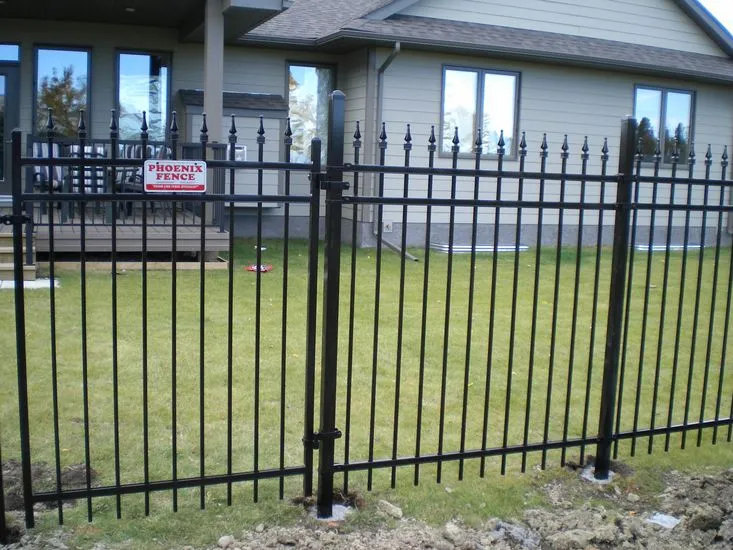

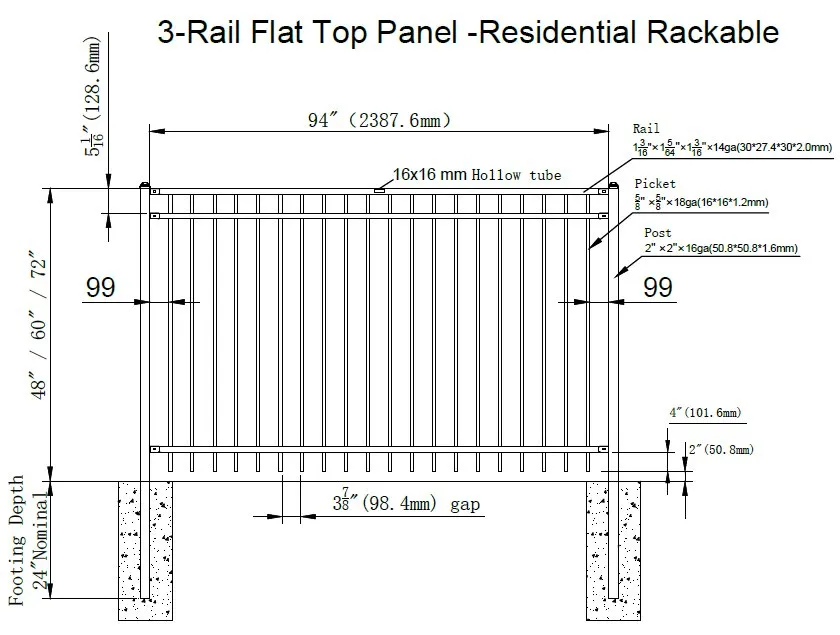

Phoenix Fence Edmonton stocks the “Phoenix Select” Ornamental Fence System manufactured in 4′, 5′ & 6′ heights complete with posts, single swing gate sizes in 38-1/2″, 47″, 64-1/2″, 73″ or 98-1/2″, and fittings/hardware.

A flat top rail with pickets descending through a mid rail and a bottom rail. The 5/8 inch, 18 gauge pickets are welded using automated drilling, punch presses and robotic welding with accuracy of +/- 0.02″, ensuring a clean and precise fit.

The fence panel design of the Phoenix Select has the ability to follow the steepest of grades so as to be installed along a slope without unsightly “stair stepping” of the fence panels. All panels in the Select product line can traverse 48″ over an 8′ span. Phoenix Select panels are manufactured from quality galvanized steel and offer a 15 year finish warranty on their AkzoNobel polyester powder coating finish.

Omega welded wire fence is a non-stock, special order line available for residential, commercial and industrial applications.

The Omega Welded Wire Fence System is a proven, distinctive and appealing architectural fence alternative for Residential, Commercial & Industrial applications. Welded wire provides unobstructed visibility, aesthetics and security while delivering a value added fencing solution. Developed to fit the lay of the land, the Omega Architectural™ adds beauty and ambience with a uniquely modern fence design that enhances the appearance and security of every property it surrounds. It allows you to illuminate your high-calibre image right through the fence.

Contact your Phoenix Fence Sales representative for further information.

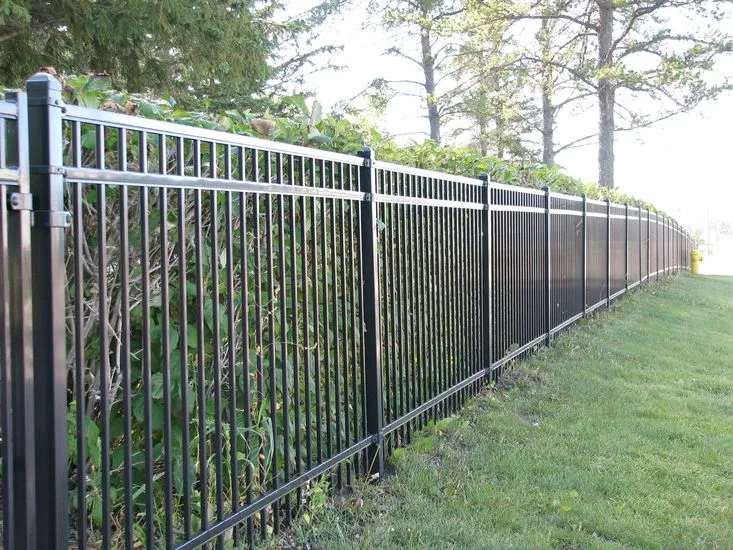

For big box stores, garden centres, governmental and institutional facilities, large residential developments, individual commercial businesses and multi-dwelling complexes, Phoenix supplies and installs the heavier Ameristar Montage lines and Omega welded wire, all as special order.

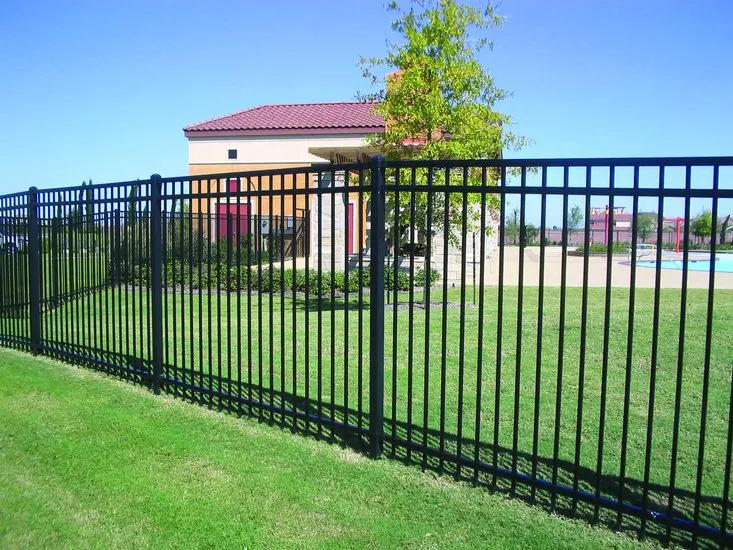

The Ameristar “Montage Plus”, “Montage Commercial”, “Montage Industrial” and “Montage II” Fence Systems have become the industry leading Commercial and Industrial Ornamental Steel Fence Systems. The Montage lineup provides the elegant look of wrought iron fencing without the expensive maintenance demanded by traditional wrought iron. Montage ornamental steel fences are popular for their aesthetic designs, maintenance free coating and durable steel construction. Many prefer Montage ornamental fences over aluminum fencing for the additional strength that a welded steel fence has compared to aluminum fences.

The Montage fusion welded steel fence panels provide the ultimate in strength and security demanded for potentially hazardous environments while providing the distinctive look of a wrought iron fence, with none of the maintenance demanded by wrought iron. Maintenance-free E-Coat provides superior corrosion protection in virtually any climate and it is backed by a 20 year warranty against corrosion. Specially formed architectural metal fence components are joined to form panels that are biasable up to 48″, allowing this ornamental picket fence to follow any grade.

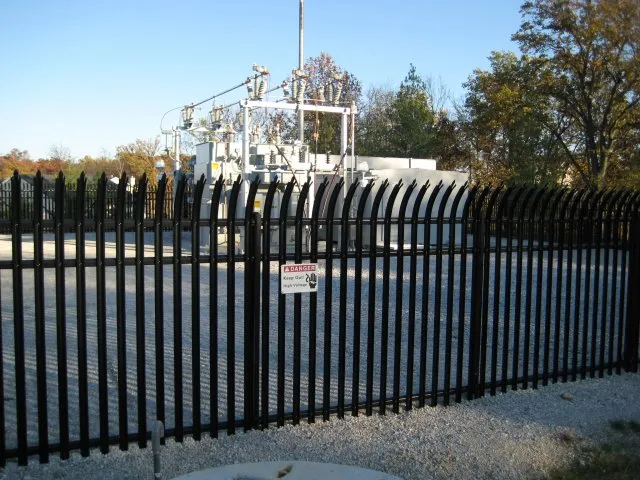

Montage Plus (3′ to 6′ high) and Montage Commercial (7′ and 8′ high) are the industry standard for commercial and industrial ornamental fence applications including municipal, governmental, schools, recreational, institutional, office, retail, healthcare, storage, water treatment, airports, petroleum, chemical and manufacturing facilities.

All four systems offer standard swing gates up to 16′, arched swing gates up to 6′ and ornamental aluminum cantilever slide gates up to 30′ opening.

Montage gate styles and sizes

• Standard single swing: 3′ to 8′ high x 4′ to 16′ opening
• Standard double swing: 3′ to 8′ high x 8′ to 32′ opening
• Arched single swing: 3′ to 7′ high x 4′ to 12′ opening

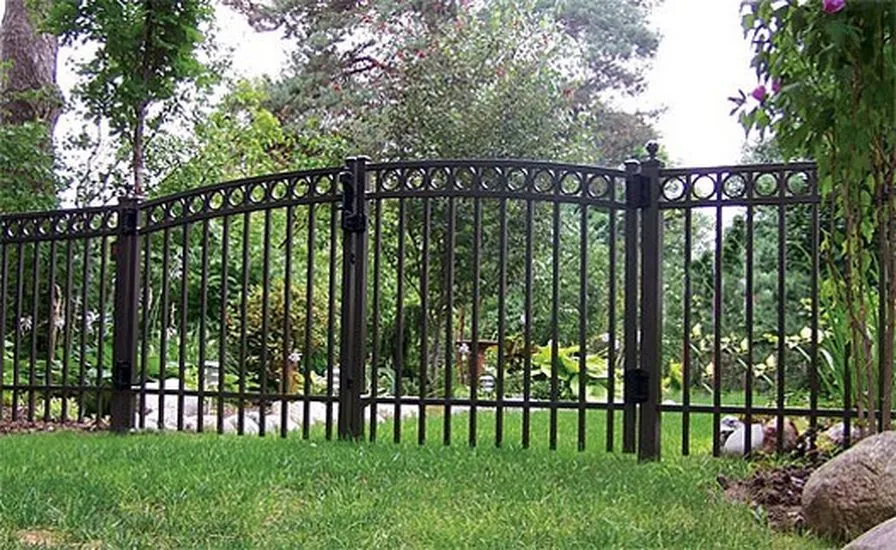

• Arched double swing: 3′ to 7′ high x 8′ to 24′ opening
• TransPort II slide cantilever gates: 4′ to 7′ high x 6′ to 30′ opening
• TransPort Estate arched slide cantilever gates: 4′ to 7′ high x 10′ to 16′ opening

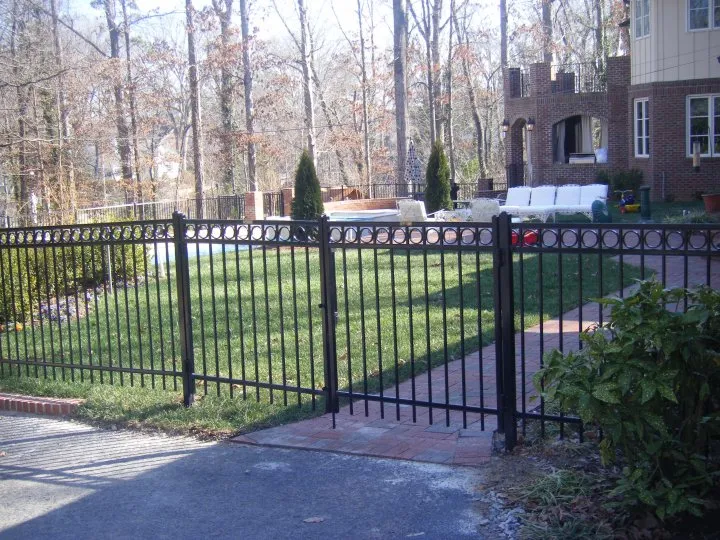

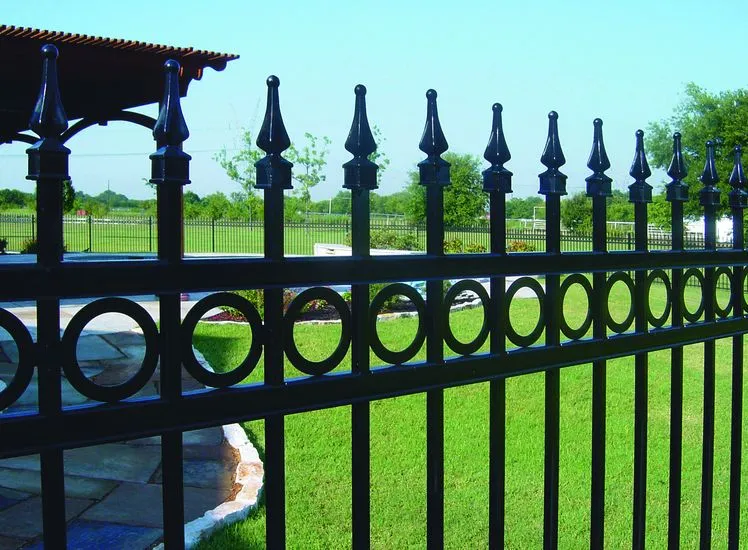

Optional quad flare finials accent Genesis exposed top pickets, and an optional double ring adornment accents three rail Majestic, Genesis or Classic panels. Please allow 3 to 4 weeks for delivery.

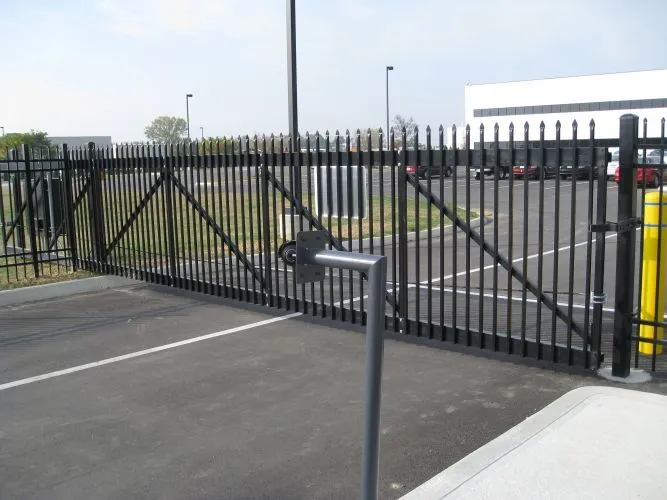

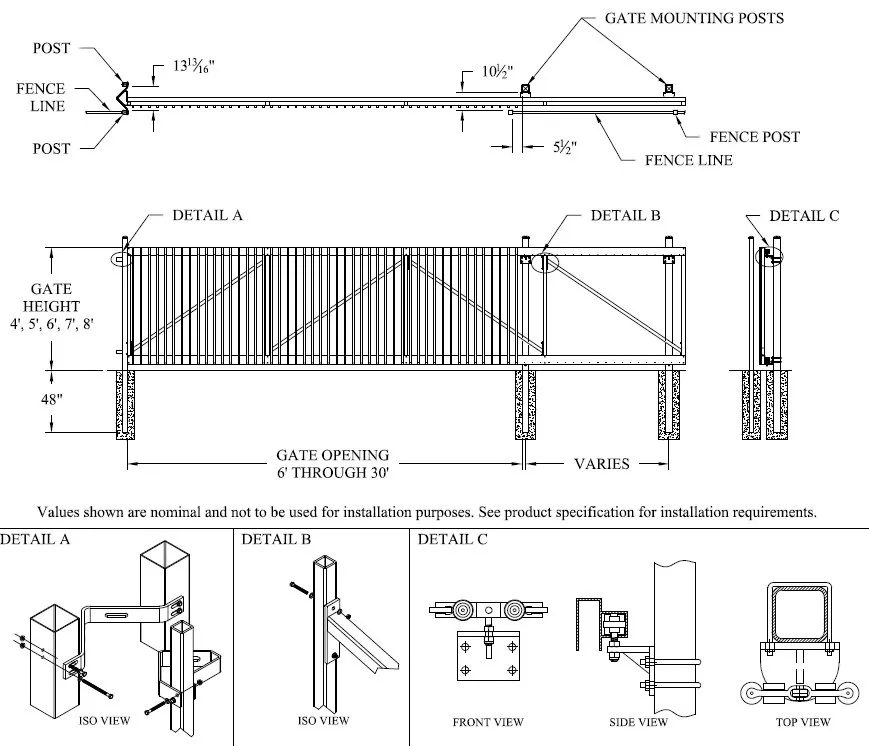

Ameristar TransPort slide gates

• Aluminum construction for superior strength, rigidity and low overall weight
• Complements the Phoenix stock Ameristar Montage Majestic and Genesis ornamental fence systems
• Black polyester powder coat finish for long term beauty and corrosion resistance
• Top and bottom track system supported by heavy duty “truck roller assemblies” for smooth, easy and safe operation with no exposed pinch points
• Frame designed symmetrically for reversibility (left or right hand opening)
• Fast and simple assembly with all framework components pre-cut and drilled for easy bolting connections, with step by step assembly instructions
• Ideal for use with automatic electric gate operator installations
• FOB Phoenix Fence Edmonton or Calgary, 14 to 18 days from time of order

All Ameristar sliding cantilever gates are special order and require specific measurements once posts are installed. Speak to a sales representative about your sliding cantilever; fence styles available are Classic, Majestic and Genesis, in Black, Bronze, White or Sand.

Contact your Phoenix Fence Sales representative for further information.

All 37 Ameristar commercial and industrial documents, including every panel and gate drawing, are on the Downloads page.

Brochures, panel drawings, gate drawings, installation manuals and the Montage warranty for every line are grouped on the Downloads page. The Warranty page lists the Ameristar limited lifetime materials warranty and Phoenix’s 1 year labour warranty.
