Barrier Arms & Vertical Pivot Gates

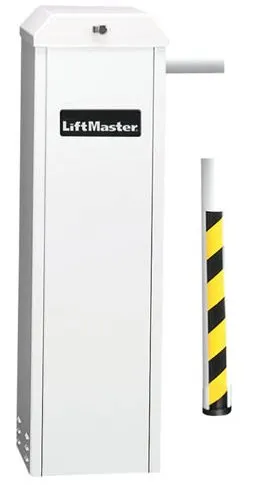

The Mega Arm Tower is designed with a 24VDC motor and provides exceptional starting torque and continuous operation. The heavy duty motor supports 6,000 cycles per day with a speed of 2.5 seconds. This makes the Mega Arm Tower ideal for all of your barrier application needs. The Mega Arm Tower also has a built in battery backup in case of emergencies. The Mega Arm Tower is a great barrier arm for security shacks, parking garages and much more.

Performance

• Continuous-duty DC motor
• Soft start/stop operation
• Aluminum alloy chassis
• Dual gate operation
• Dynamic braking
• Universal controller with 8 inputs
• Timer-to-close (0 to 16 seconds)
• 12' and 15' aluminum arm or a 14' soft padded arm

Safety

• Security+ 2.0 technology virtually eliminates interference and offers up to 2X the range of standard remote controls
• Inherent obstruction sensing
• Safety stop tailgate feature stops closing of the gate when tailgating is sensed at the close input, and does not continue until the close input is removed or the gate re-opens
• Ability to open automatically when power fails
• Breakaway arm

Please call Phoenix Fence's Automated Gate department for more information.

The BG790 is a Heavy-Duty industrial wishbone barrier arm gate operator. This barrier arm is designed for your larger barrier arm applications, which could include a large gate opening or needing to block off a full 2 lane road. The BG790 has an arm length of 24' that weighs 50 lbs.

Performance

• Continuous-duty 1/2 HP AC commercial motor
• Heavy-Duty gear reducer
• 11-gauge steel weather resistant cabinet
• Removable top and side panels for easy access
• Electrical controls in separate removable enclosure
• 24VAC control circuit
• 2-button control station
• Power ON/OFF switch
• One 115VAC accessory outlet (on 115VAC models only)
• Fully adjustable limit system
• Pad Mount
• Wishbone Arm and Counterweight
• Dual barrier gate compatible

Safety

• Security+ 2.0 technology virtually eliminates interference and offers up to 2X the range of standard remote controls
• Full systems capability, compatible with most access control devices and safety accessories
• Supports optional LiftMaster Plug-In Loop Detectors for exit and hold-open loops
• UL 325 compliant for Classes I, II, III and IV

Please call Phoenix Fence's Automated Gate department for more information.

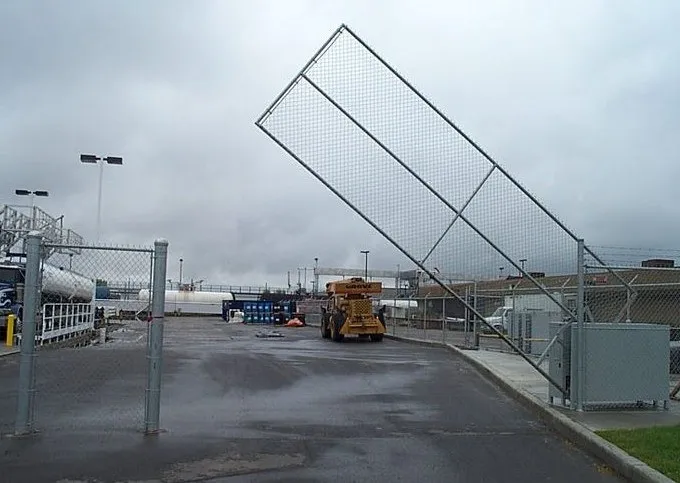

Commercial / Industrial / Residential Pivot Gate

The Vertical Pivot Gate will operate in all weather conditions, including extreme cold and snow. This makes it a very reliable security measure for your home, business, or industrial site. Gates can be custom manufactured in lengths up to 20' in steel and 24' in aluminum. With an anti-climb design, and open and close cycles that range from 10 to 12 seconds on all models, the Vertical Pivot Gate is one of the leading entrance security measures.

Features

• Meets UL 325 Specifications
• Stand-alone system
• 24 VDC reserve power, can do up to 1000+ cycles from fully charged batteries
• Rust and Corrosion resistant
• Low maintenance

The Vertical Pivot Gate is a special order gate operator. Please call Phoenix Fence gate operator personnel for more information.
